Solar Energy 15kWh Home Energy Storage Battery Easy-to-Move 51.2V 300Ah LiFePo4
£2,499.00
£1,874.25
Save 25%
VAT included
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
|
Parameters
|
|
|
Item
|
Parameters
|
|
Basic Parameters
|
Braun Power 48v/51.2v 300Ah battery pack
|
|
Nominal Voltage (V)
|
51.2V
|
|
Nominal Capacity (Ah)
|
300Ah @0.5C discharge current 25±2℃
|
|
Nominal Power (Wh)
|
15.36KWh
|
|

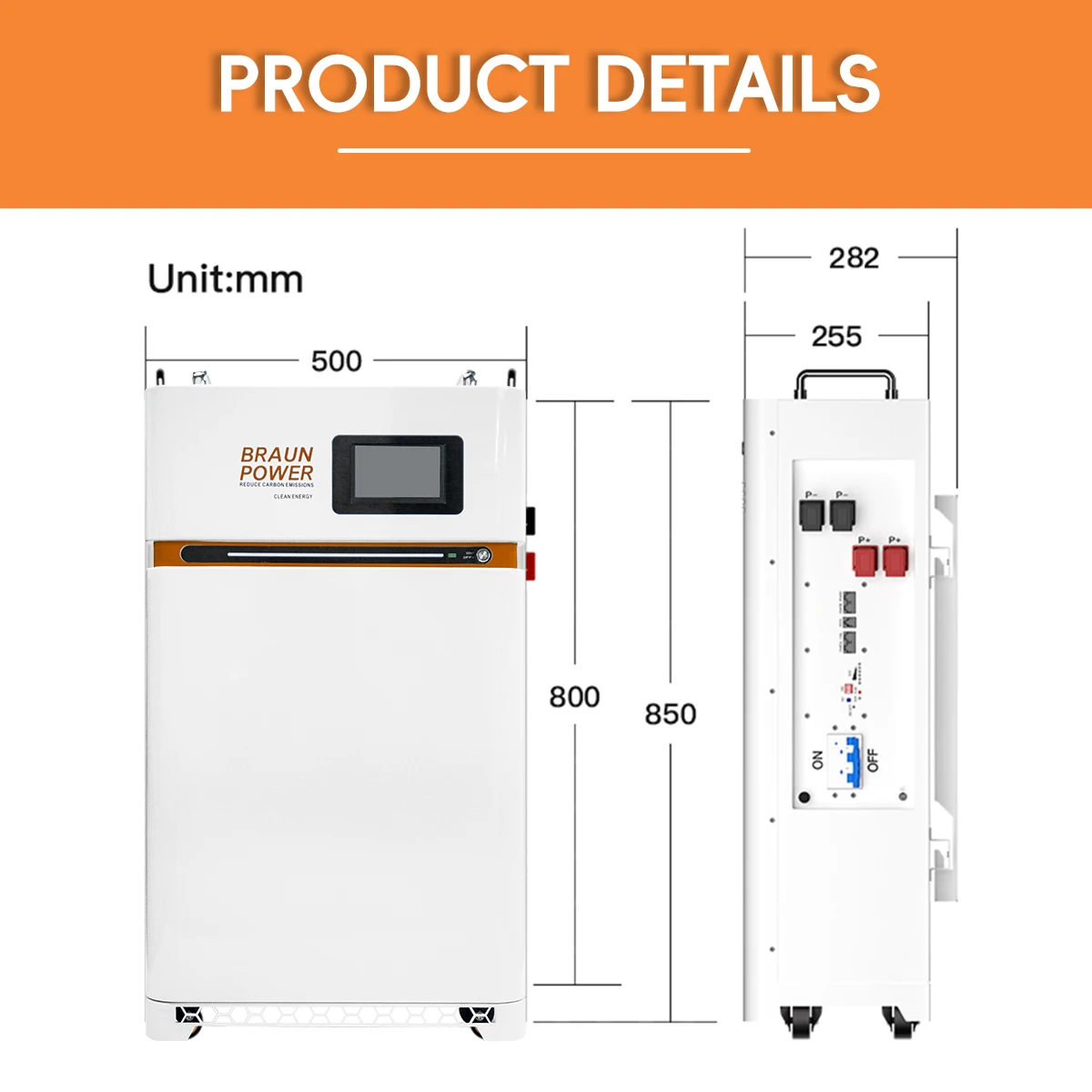

Dimension (mm)
|
850*500*282mm
|
|
Weight (Kg)
|
138KG
|
|
Discharge Cut-off Voltage (V)
|
41.6V
|
|
Charge Voltage (V)
|
57.6V
|
|
Continuously Charge /Discharge Current (A)
|
0.2C @25±2℃ (Recommended)
|
|
Max Standard charge /discharge Current (A)
|
200A @25±2℃
|
|
Standard charge/discharge Current (A)
|
0.2C @25±2℃ (Recommended)
|
|
Max Standard charge/discharge Current (A)
|
200A @25±2℃
|
|
Working Temperature |
0～50℃(Charge)
|
|
-10～50℃(Discharge)
|
|
|
-20～55℃(Storage)
|
|
|
SOC Range
|
5%-100%
|
|
Recommended SOC Range
|
10%-90%
|
|

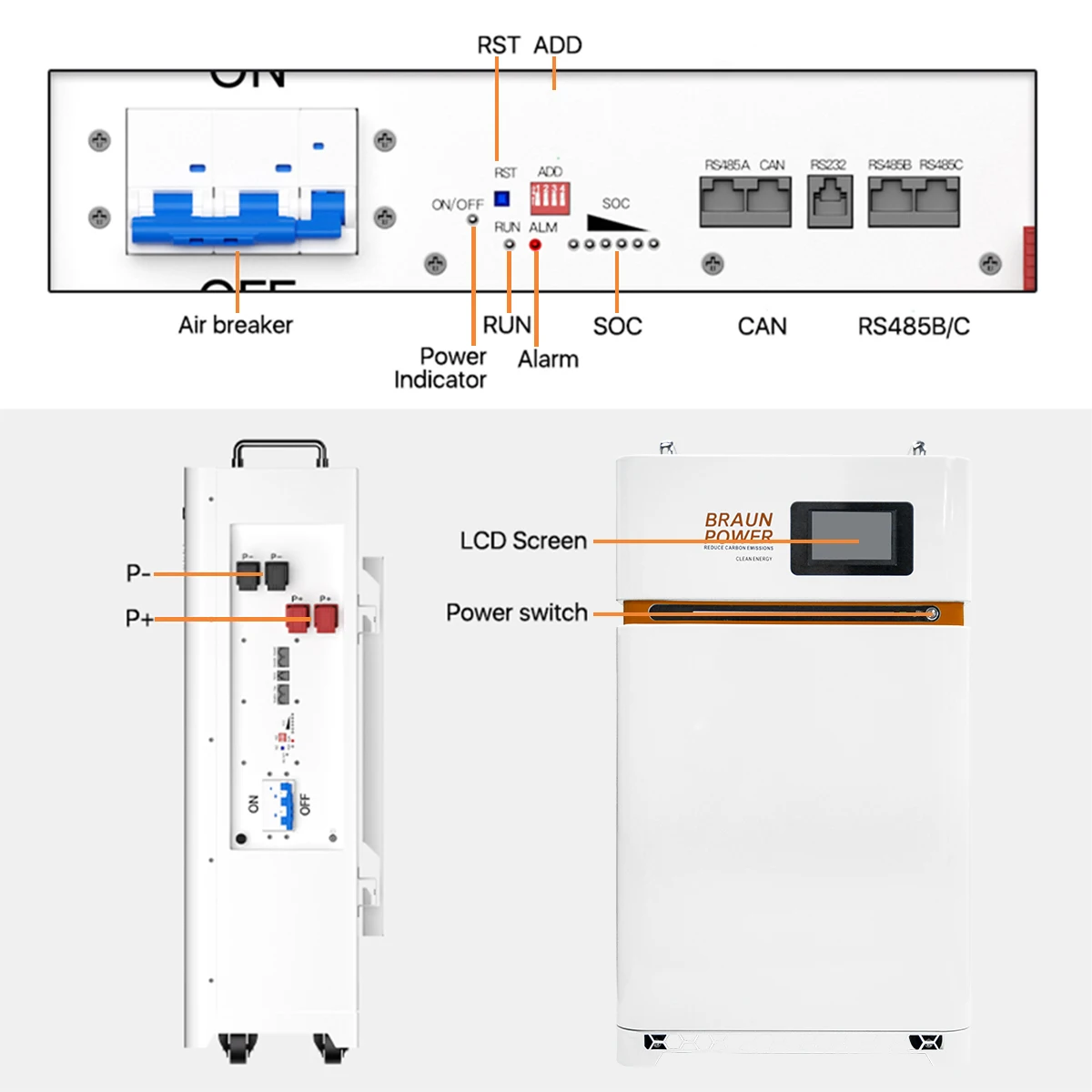

Communication Interface
|
CAN or RS485
|
|
Humidity
|
10% - 85%
|
|
IP level
|
IP 65
|
|

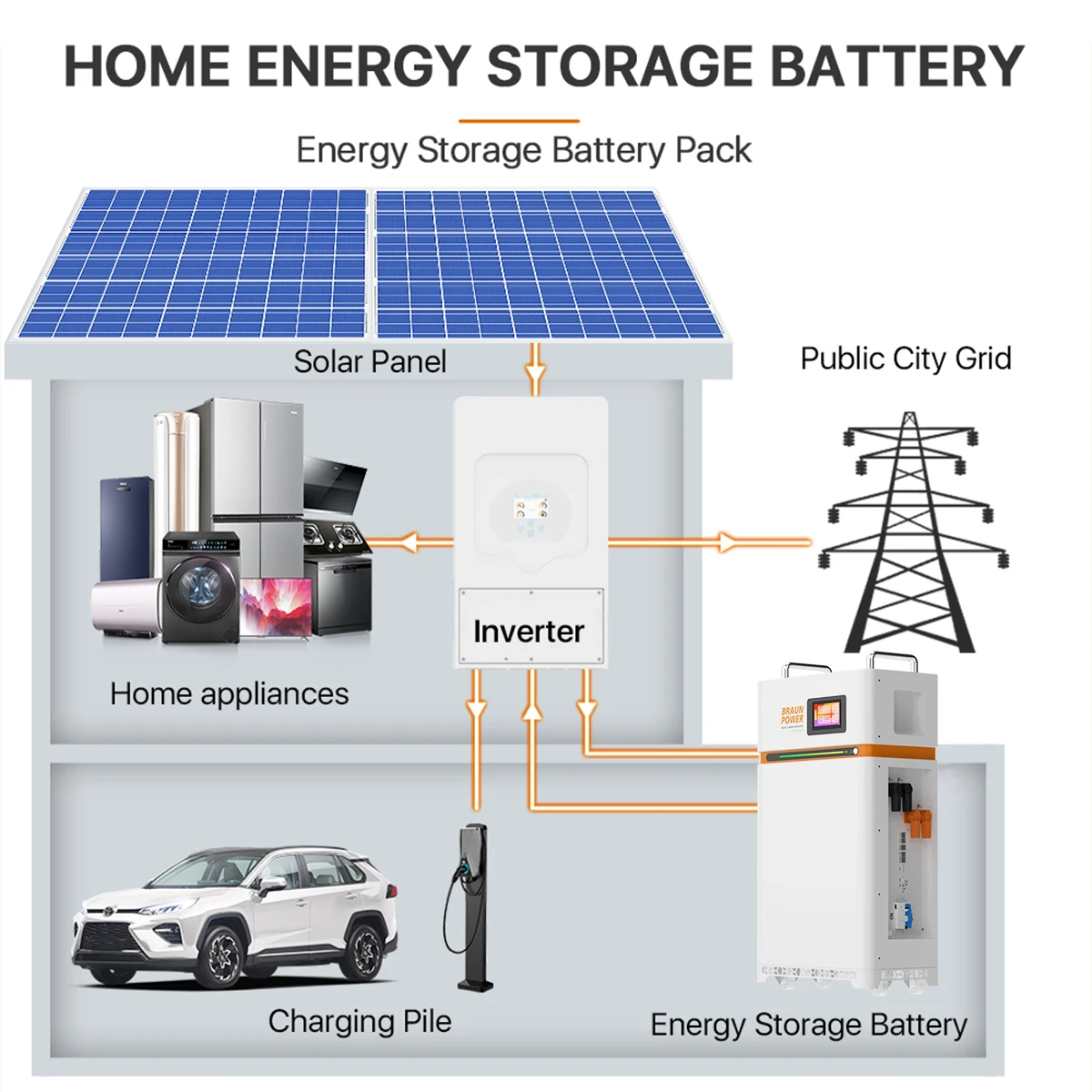

The newly upgraded BRAUN Battery pack simplifies the process of building a 51.2V solar storage system. With our Grade A 300Ah cells, you can achieve a 5kW solar storage capacity. Highly recommended to take 16pcs Grade A (280AH 302AH 304Ah 306Ah 314Ah 320Ah ) cells together to build a fully battery pack system.
BRAUN are Official distributor of DALY/ JK/ JBD brand and Supply other safety DIY Pack accessories together Just show us what
kinds of BMS you need. I will quote the RIGHT BMS/KITS and accessores together. 100% technicial support ,100% after-sales support |
|
|

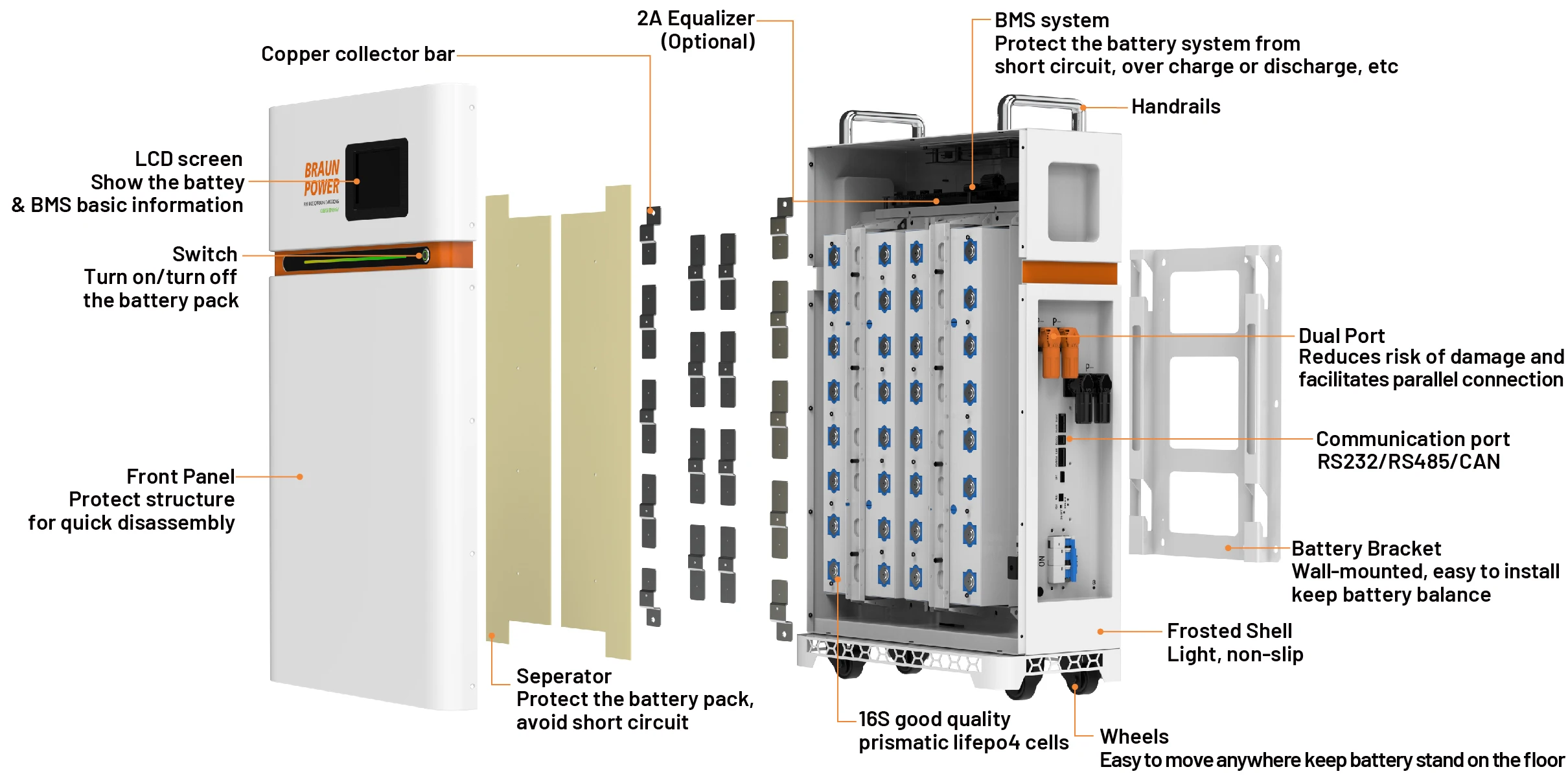

The Battery case includes the following accessories.
Smart BMS with LCD dispaly and BT Kits
|
|
|
Pre-installed |
① BR 16S200A smart BMS with KS48100Ho20
② Active balancer(Optional)
③ DC breaker(Optional) ④ LCD dispaly ⑤ Shell, Front panel,Cover plate ⑥ Handle. |
|
Connect Everything Enjoy Your DIY Journey |
⑦ Insulation board

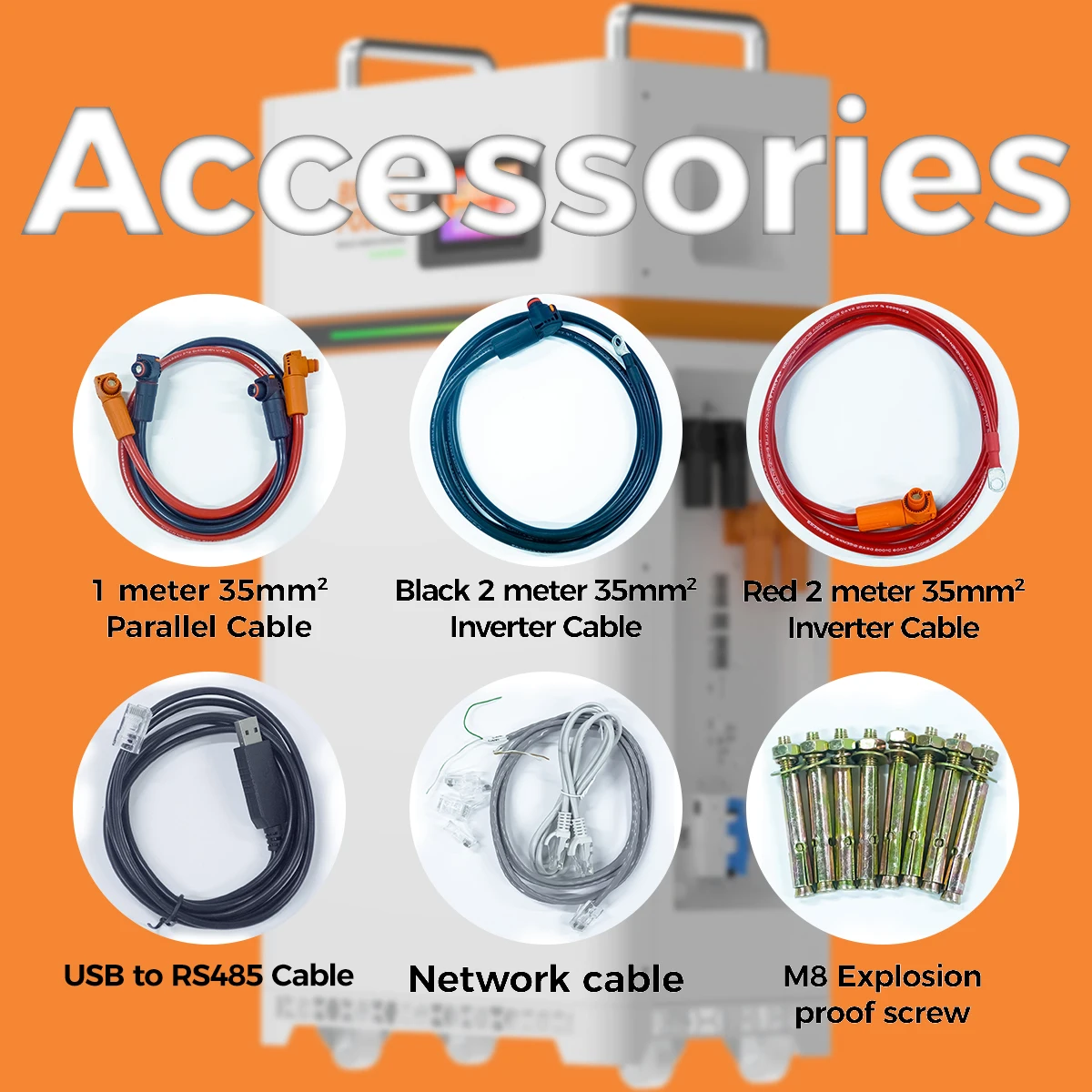

⑧ Charge and discharge connector
⑨ Screws & flexible busbar ⑩ USB-485 communication cable ⑪ 35mm² Inverter communication cable ⑫ 35mm² Parallel cable
|
|
Box accessory List
|
|||||
|
NO.
|
Accessory Name
|
QTY(PC)
|
NO.
|
Accessory Name
|
QTY(PC)
|
|
1
|
Front Panel
|
2
|
8
|
M6 Baffle Screws
|
36
|
|
2
|
Back Panel
|
2
|
9
|
Connection wire
|
1
|
|
3
|
PCB Pressure Plate
|
2
|
10
|
Positive and negative protect cover
|
4
|
|
4
|
Epoxy Board
|
1SET
|
11
|
Soft copper plate
|
15
|
|
5
|
Heating film
|
2
|
12
|
Button caps
|
8
|
|
6
|
EVA Foam
|
4
|
13
|
35mm² Parallel cable
|
2
|
|
7
|
Connect wire
|
1
|
14
|
35mm² Inverter connection cable
|
2
|
